High-Speed Camera

High-Speed Camera

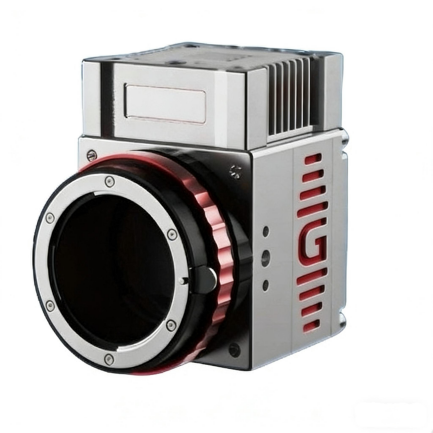

The GR Real-Time Transmission Series High-Speed Cameras are developed based on the industry-leading Thousand Eyes Wolf M-Series High-Speed Cameras. They integrate interfaces complying with the CoaXPress 2.0 standard featuring high bandwidth and high-speed transmission, enabling real-time transmission of high-quality images and lossless data.

Main Features

• The camera is equipped with 4 encapsulated interfaces based on the CXP‑12 protocol.

• Exposure time: 1 μs.

• Supports power supply via CXP or 24V DC input; provides 5V / 12V DC output.

• Threaded lens mount design, compatible with C / F / EF mounts.

• Standard industrial PC included; supports storage expansion.

• Camera protection class: IP64.

• Supports customization for high and low temperature operating environments.

• Suitable for operation in high‑humidity environments.

Main Applications

• Rocket launch analysis at aerospace launch sites

• Impact point, velocity and attitude measurement at shooting ranges / muzzle velocity and attitude measurement

• Fluid mechanics, analytical chemistry, and material mechanics research

• Industrial equipment fault monitoring

• Sports motion analysis

• Shaking table tests
